Novation Circuit - Macro Editor ( One Big Page )

edited July 2018 in Other

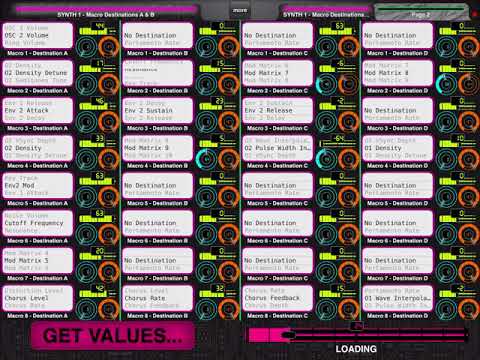

Have you ever wanted to see all your Circuit’s Macro Destinations and values on one big page? Yep. Me too! :) #mididesigner #midifire #wearenovation #workinprogess

Comments

  • Wow, that’s quite a bit of work on that. I just use the MIDISynth-Circuit app, and that’s good enough for me.

  • @DMan said:
    Wow, that’s quite a bit of work on that. I just use the MIDISynth-Circuit app, and that’s good enough for me.

    Yeah, I beta tested for that app. It has some great features but also some slightly annoying "unintuitvness" about it. Also, it's Macro page is behind tabs.

    Which is why I worked on one big page with everything visible. :)

  • Will be adding Synth 2 and improving the look this week hopefully.

    If anyone has both MidiFire & MidiDesigner apps and are interested in this, just let me know and I can share the files when done.

  • improved the look tonight. 3am now. zzzzzzzzzzz

  • Wow, 5:24 am and I'm discovering your lovely post :)

  • edited July 2018

    Synth 2 page finished.

    Just waiting on MidiFire to update (should be this week) and I can then share the files for both MidiFire & MidiDesigner.

    Just inbox me if interested.

  • edited July 2018

    My One-Page Circuit Macro editor is now working with current versions of MidiFire & MidiDesigner, (you'll need both). Have fun! :)

    You can download the files from my dropbox here.... http://bit.ly/MACROS1




  • nice work!

  • edited July 2018

    @syrupcore said:
    nice work!

    Cheers. Fun project! :)

    @johnfromberkeley said:
    Want.

    Link above. :) http://bit.ly/MACROS1

  • edited July 2018

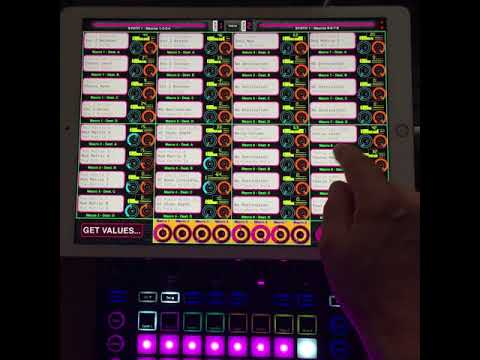

    Quick vid of the layout hooked up to Circuit...

  • Deciphering the Circuit patch sysex.

    With some help from the Circuit programmers guide.

    https://us.novationmusic.com/sites/default/files/novation/downloads/12118/circuit-midi-parameters-v4.pdf

  • @SpookyZoo going back to your post, I've got a couple of questions for you...

    I'd like to do something a bit different, but I think lot simpler than that.
    Purpose is to get values of some parameters of some IAA or AUv3 synths and sending back to a midi controller like a MidiFighterTwister, a Berhinger BCR2000 and a Quneo.

    It seems for AUv3, only host can access to the parameters of what is hosting...
    For IAA, parameters might not even being public...
    See here:
    http://audeonic.boards.net/thread/518/streambyter?page=1&scrollTo=3029

    Did you test successfully with IAA or AUv3 synths to get some parameters with Midi Designer Pro ?
    I'd like to do this first with DRC, as an example...

    I'm also interested with your "get values" button...Can MDP could handle a "push values" action also ?
    Ideally, there would be a "get values" button to get values from an IAA/AUv3 synth, then a "push values" that would send values to different controllers...
    These 2 buttons would be midi controllable.

    I thought all could be achieved with AUM (and his midi routing) and Stream Byter (AUv3 version) but I have no clue on to create a "get values" cc action and a "push values" with Stream Byter...

    Any advice would be very welcome :)

  • @crony said:
    @SpookyZoo going back to your post, I've got a couple of questions for you...

    I'd like to do something a bit different, but I think lot simpler than that.
    Purpose is to get values of some parameters of some IAA or AUv3 synths and sending back to a midi controller like a MidiFighterTwister, a Berhinger BCR2000 and a Quneo.

    It seems for AUv3, only host can access to the parameters of what is hosting...
    For IAA, parameters might not even being public...
    See here:
    http://audeonic.boards.net/thread/518/streambyter?page=1&scrollTo=3029

    Did you test successfully with IAA or AUv3 synths to get some parameters with Midi Designer Pro ?
    I'd like to do this first with DRC, as an example...

    I'm also interested with your "get values" button...Can MDP could handle a "push values" action also ?
    Ideally, there would be a "get values" button to get values from an IAA/AUv3 synth, then a "push values" that would send values to different controllers...
    These 2 buttons would be midi controllable.

    I thought all could be achieved with AUM (and his midi routing) and Stream Byter (AUv3 version) but I have no clue on to create a "get values" cc action and a "push values" with Stream Byter...

    Any advice would be very welcome :)

    Hey @Crony Thanks for the interest in my layout.

    The ‘Get Values’ button was a eureka moment I had when I realised I could use 3 specific things in combination. These being a 9 byte sysex message sent to the Novation Circuit via a button in Midi Designer, which then gets the Cilrcuit to send back a 350 byte patch dump sysex message. This gets fed into MidiFire’s StreamByter module which has a bunch of rules to read and feed the specific midi array values back to the Macro controls in the Midi Designer layout.

    Which unfortunately I don’t believe would be possible with AUv3 synths.

    A few iOS synths are bidirectional midi (The Moogs I believe), but I’m not aware of any that have a command or button to ‘send all values’. I doubt this would even happen with a programme change.

    I’ll have a think anyway, to see if there’s a way, but I doubt it.

    Do you have a Circuit btw?

  • @McDtracy Hey, thanks.

    You can grab all the MidiFire &Midi Designer files from this link http://bit.ly/MACROS1

    Let me know how you get on. :)

  • @SpookyZoo said:
    Deciphering the Circuit patch sysex.

    With some help from the Circuit programmers guide.

    https://us.novationmusic.com/sites/default/files/novation/downloads/12118/circuit-midi-parameters-v4.pdf

    UTTER BOFFIN MAN NOISE OF SCIENCE

  • Did another thing...

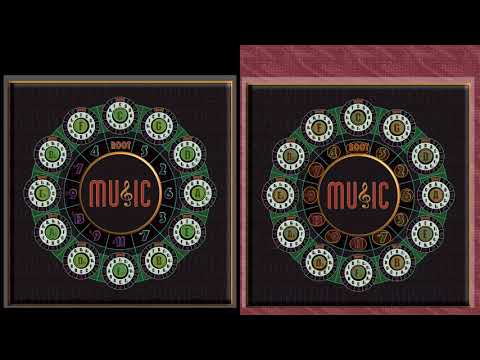

    Combined my love of Midi Designer & Affinity Designer to bring my Circle of Fifths poster design to life with midi! :)

    Notes from the Novation Circuit...

  • @SpookyZoo well you are crazy, that’s official 😉
    I don’t own a circuit and my quest seems doomed 😆
    Anyway Getting much fun seing your work !

  • @crony said:
    @SpookyZoo well you are crazy, that’s official 😉
    I don’t own a circuit and my quest seems doomed 😆
    Anyway Getting much fun seing your work !

    Ha, perhaps! ;)

    Thanks!
